Design requirements for unpowered roller conveyors

2025-03-18 51

Unpowered roller conveyors are easy to connect and filter. Multiple unpowered roller lines and other conveying equipment or special machines can be used to form a complex logistics conveying system to meet various process needs. Accumulation and conveying of materials can be achieved by using accumulation unpowered rollers. The structure of the unpowered roller conveyor is mainly composed of transmission unpowered rollers, frames, brackets, drive parts and other parts. The line body material is divided into: aluminum profile structure, steel frame structure, stainless steel structure, etc. The unpowered roller material is divided into: metal unpowered roller (carbon steel and stainless steel), plastic unpowered roller, etc. Weifang unpowered roller conveyor has the characteristics of large conveying capacity, fast speed, light operation, and can realize multi-variety co-line diversion conveying. Unpowered roller conveyors are suitable for various needs such as continuous conveying, accumulation, sorting, and packaging of various finished items. They are widely used in electromechanical, automobile, tractor, motorcycle, light industry, home appliances, chemical, food, post and telecommunications and other industries.

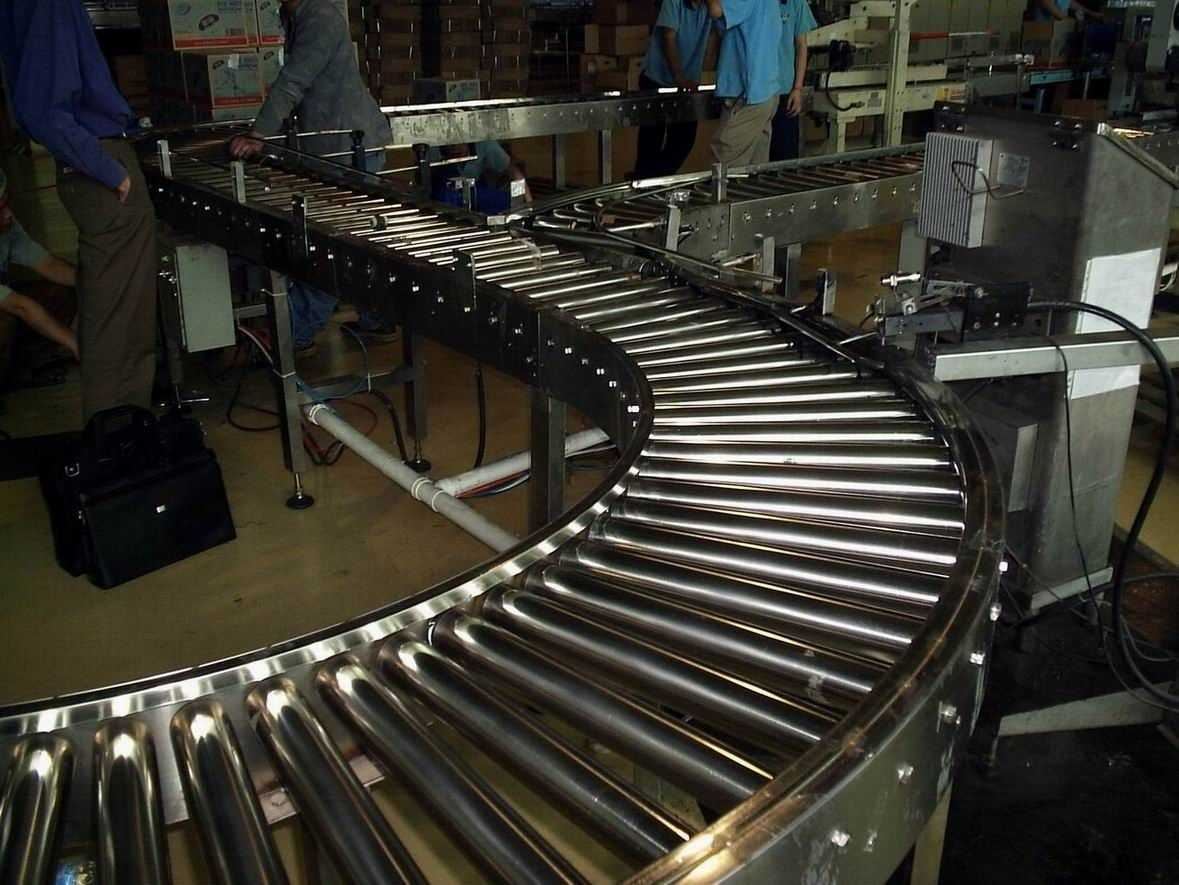

Powerless roller conveyor is one of the many conveying equipment, mainly conveying the bottom of the plane of the goods, bulk materials, small items or irregular items need to be placed on the pallet or turnover box conveyor. It has good load-bearing capacity and can convey materials with large single piece weight or bear large impact load. The structure form of powerless roller conveyor can be divided into powerless roller conveyor, powerless roller conveyor, accumulating powerless roller conveyor according to the driving mode. According to the line form can be divided into horizontal powerless roller conveyor, inclined powerless roller conveyor and turning powerless roller conveyor. It can also be specially designed according to the requirements of customers to meet the requirements of all kinds of customers.


There are many kinds of conveyors, including belt conveyor, screw conveyor, scraper conveyor, belt conveyor, chain conveyor, powerless roller conveyor and so on. Among them, the powerless roller conveyor is mainly used for the transportation of all kinds of boxes, bags, pallets and other pieces of goods, and some bulk materials, small items or irregular items need to be placed on the pallet or in the turnover box transportation.

1, the length, width and height of the object to be conveyed: different widths of the goods should be selected to fit the width of the powerless roller, in general, the use of “conveyor + 50mm”.

2, the weight of each conveying unit.

3, to determine the bottom condition of the material to be conveyed on the powerless roller conveyor.

4, consider the powerless roller conveyor has no special working environment requirements (such as: humidity, high temperature, the impact of chemicals, etc.);; 5, the conveyor is a powerless roller conveyor.

5, the conveyor belongs to the powerless type or motor-driven type.


Manufacturers in the customization of non-powered roller conveyor must consider the above technical parameters of information, in addition, but also to prompt the majority of customers is, in order to ensure that the non-powered roller conveyor to work goods can be transported smoothly, there must be at least three at any point in time with the conveyor to keep in contact with the conveyor, for the soft bags of goods should be added when necessary pallet conveyor.
