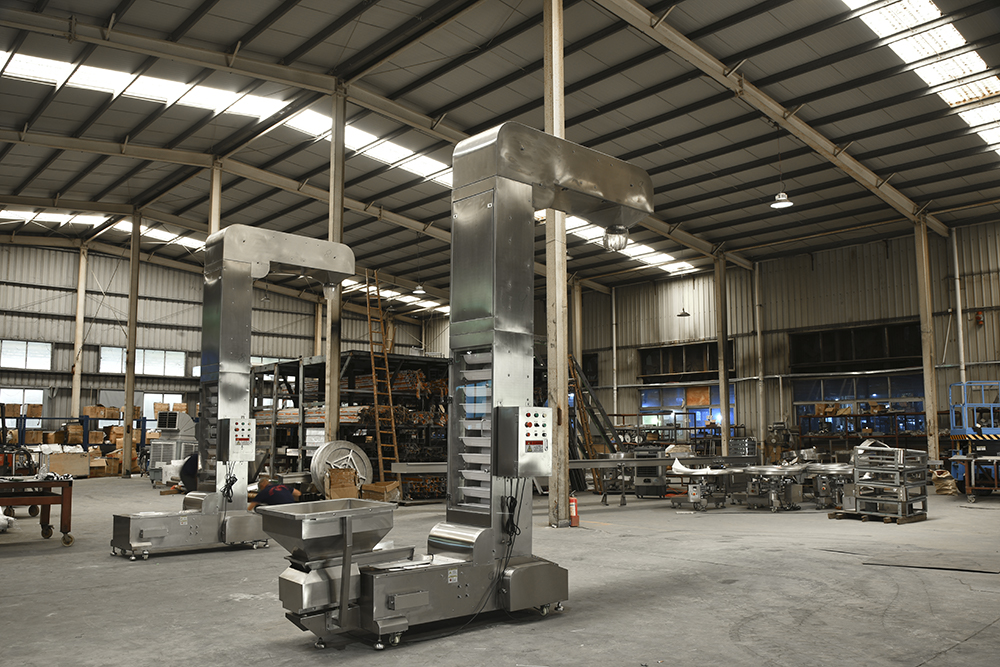

The Z-type bucket elevator, characterized by its unique "Z" shaped structural design, enables multi-stage conveying paths (Horizontal-Vertical-Horizontal). Known for its compact footprint, multi-point loading/unloading capabilities, superior sealing, and low breakage rates, it is widely utilized across the following sectors:

I. Core Industry Applications

1. Food Industry

· Target Materials: Potato chips, biscuits, nuts, candies, puffed food, pet food (cat/dog food), grains (rice, wheat, corn), etc.

· Scenario Advantages:

· Hygiene Standards: Sealed design prevents dust contamination; features stainless steel construction and dead-zone-free structures to meet food-grade requirements.

· Product Integrity: Gentle conveying minimizes breakage, maintaining product quality (e.g., near-zero breakage for potato chips).

· Automation: Supports multi-point feeding/discharging to integrate seamlessly with automated packaging lines and mixers.

2. Chemical Industry

· Target Materials: Powdered raw materials (potassium chloride, sulfuric acid, nitric acid salts), granular catalysts, plastic pellets, rubber granules, activated carbon, etc.

· Scenario Advantages:

· Safety: Fully enclosed structure with explosion-proof design prevents dust leakage and static accumulation (e.g., PE/PP powder conveying).

· Corrosion Resistance: Utilizes 316L stainless steel for handling strong acidic or alkaline materials.

· Efficiency: Annual throughput can reach 50,000 tons with a failure rate below 0.3%.

3. Pharmaceutical Industry

· Target Materials: APIs (Active Pharmaceutical Ingredients), granules, capsule fillers, Chinese herbal pieces, etc.

· Scenario Advantages:

· Compliance: Meets GMP certification; material residue rate is <0.01% (internal walls polished to Ra≤0.2μm).

· Precision: Supports high-precision weighing modules (±0.1% accuracy) linked to PLC systems for batch errors ≤0.5kg.

· Sterilization: Equipped with ozone sterilization systems, keeping microbial residue <1 CFU/100cm².

4. Metallurgy & Mining

· Target Materials: High-temperature slag, metal powders, iron powder, steel grit, rare earths, ore powder, etc.

· Scenario Advantages:

· Durability: High-temperature resistant chains and ceramic linings support continuous operation up to 300°C, with a service life of 8+ years.

· High Capacity: Deep-bucket design (up to 40L/bucket) handles 348m³/h with lifting heights exceeding 80 meters.

· Extreme Environments: Low-temp models operate stably at -40°C using cold-resistant chains and heating modules.

5. Environmental Protection

· Target Materials: Incineration fly ash, sludge, crushed battery scrap, medical waste, etc.

· Scenario Advantages:

· Emission Control: Double sealing and negative pressure dust removal keep dust concentrations below 10mg/m³.

· Risk Mitigation: Anti-static piping and ATEX explosion-proof certification reduce dust explosion risks.

· Anti-Clogging: Self-breaking arch devices reduce cleaning time from 4 hours to 30 minutes.

6. Building Materials

· Target Materials: Cement, limestone, gypsum, sand, slag, etc.

· Scenario Advantages:

· Wear Resistance: Ceramic-lined components offer 3x the impact resistance and 2x the service life of standard equipment.

· Energy Efficiency: Flexible 3D layouts reduce power consumption to 12.1 kW·h/ton (40% lower than pneumatic conveying).

· Smart Monitoring: IoT systems and AI algorithms predict clogging risks with 92% accuracy.

II. Typical Application Scenarios

· Space-Constrained Environments: Replaces the combination of "Vertical Elevator + Horizontal Conveyor," reducing floor space by over 40%.

· Multi-Station Collaboration: Enables one machine to feed multiple silos or workstations simultaneously via multi-point discharge.

· Extreme Conditions: Handles high/low temperatures and high-viscosity materials (e.g., Titanium Dioxide or sludge) using Teflon coatings.

· Clean Production: Mirror-polished surfaces and non-contact sealing (FDA certified) for pharmaceutical and food grade environments.

III. Technical Advantages Summary

· Energy Saving: Variable frequency drives and IE5 permanent magnet motors reduce power consumption by 15-20%.

· Intelligent O&M: AI torque adaptation and Digital Twin/IoT monitoring reduce failure rates by 70%.

· Modular Design: Quick-change buckets and chains allow the system to adapt to over 10 different material types.

· Extended Life: Wear-resistant components ensure an 8+ year lifespan and a 40% reduction in maintenance costs.
